Custom Fields & Widgets

These components allow you to embed your own HTML, CSS, and JavaScript directly into forms or dashboards — giving you full control over the user experience.

What You Need to Know

To use Free HTML fields or widgets, you should have a basic understanding of:

Free HTML Field (Beta)

The Free HTML field is a special type of field that you can add to any table. It renders custom HTML content within the form view and can react to changes in the current record's data.

Free HTML Field – Official Docs

According to the official documentation:

It allows you to display custom data in your form using HTML, CSS, and JS.
You can even fetch and display data from other records or tables, although the field remains part of a specific record and only appears in its form.

Key Characteristics

Rendered inside the form of a single record

Has access to doo.model – i.e., the current record’s values

You can fetch data from other tables using the Tabidoo JS API

You can react to data changes using onModelChange


Use Case Example: Show Latest Status

Let’s say you have multiple date fields (created, delivered, invoiced, etc.) and want to determine which status is the most recent.

Visual element:

HTML:

<style>
#{{TBD-RANDOM-ID}}-statusInfo {
    padding: 6px 10px;
    border-radius: 5px;
    background-color: #D6E2FF;
    color: #3973FF;
    font-weight: bold;
    text-align: center;
}
</style>

<div id="{{TBD-RANDOM-ID}}-statusInfo">Loading...</div>

JavaScript idea (simplified):

// On any status field change // Compare dates -> find latest -> show the label in the HTML element

Note: The field does not store any values, it’s a read-only renderer for computed or visual output.

Free HTML Widget

The Free HTML widget is used on Dashboards and serves a different purpose: rendering aggregated data or custom visualizations across the entire dataset, often across multiple tables.

Free HTML Widget – Official Docs

From the docs:

This widget enables you to display a completely custom design or report using JavaScript, HTML, and CSS.
It can utilize data from Tabidoo using the dataProvider interface and present it as charts, graphs, custom layouts, or metrics.

Key Characteristics

Renders on the Dashboard, not in individual records

Has access to dataProvider, context, and external sources

Used for custom visual reports, KPIs, dashboards

You can create filters, animations, or even embed other components

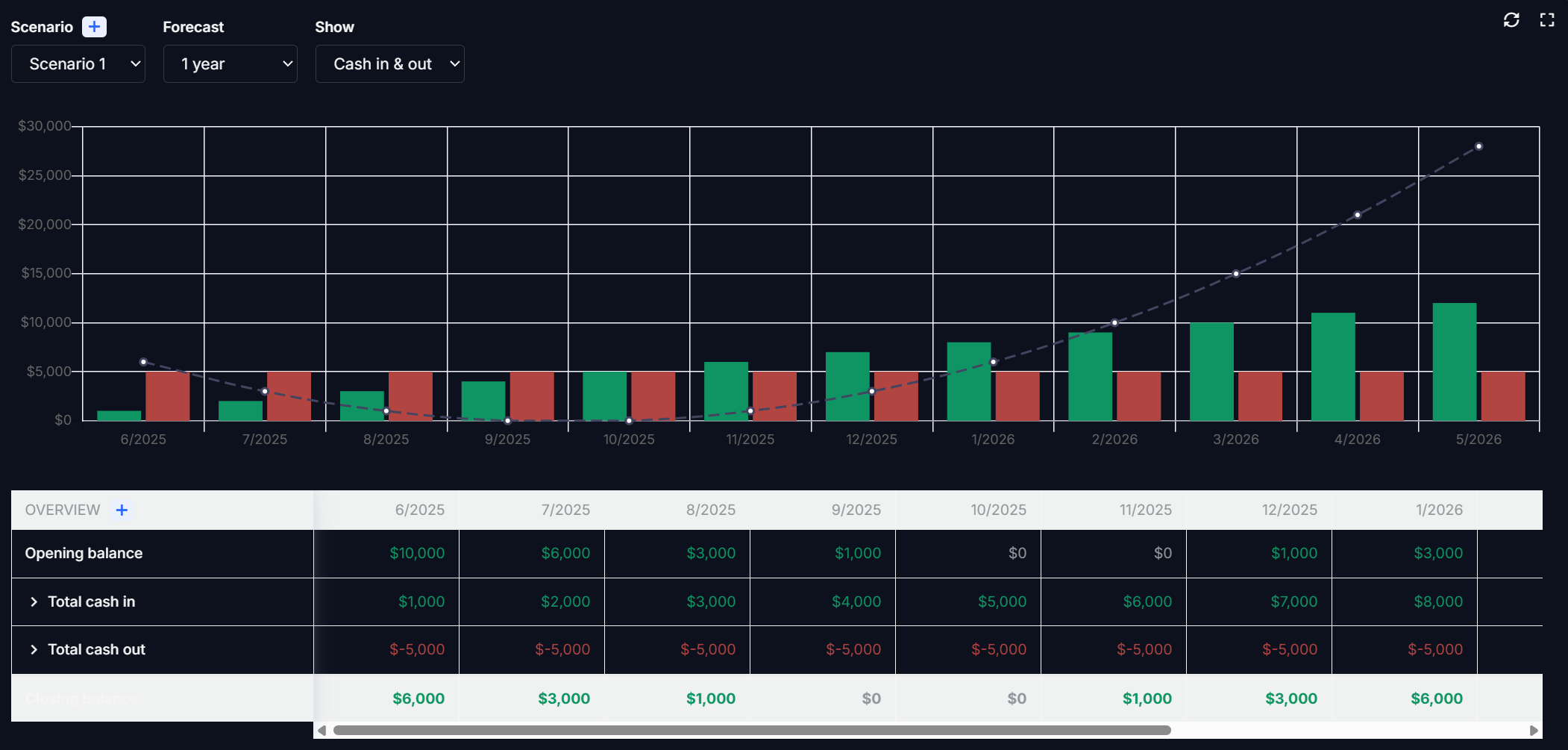

Use Case Example: Forecasting

One common use is forecasting future revenue or cash flow. You can visualize incoming/outgoing funds with filters (e.g., Scenario, Forecast period, etc.) and show it using a chart library or basic HTML/CSS.

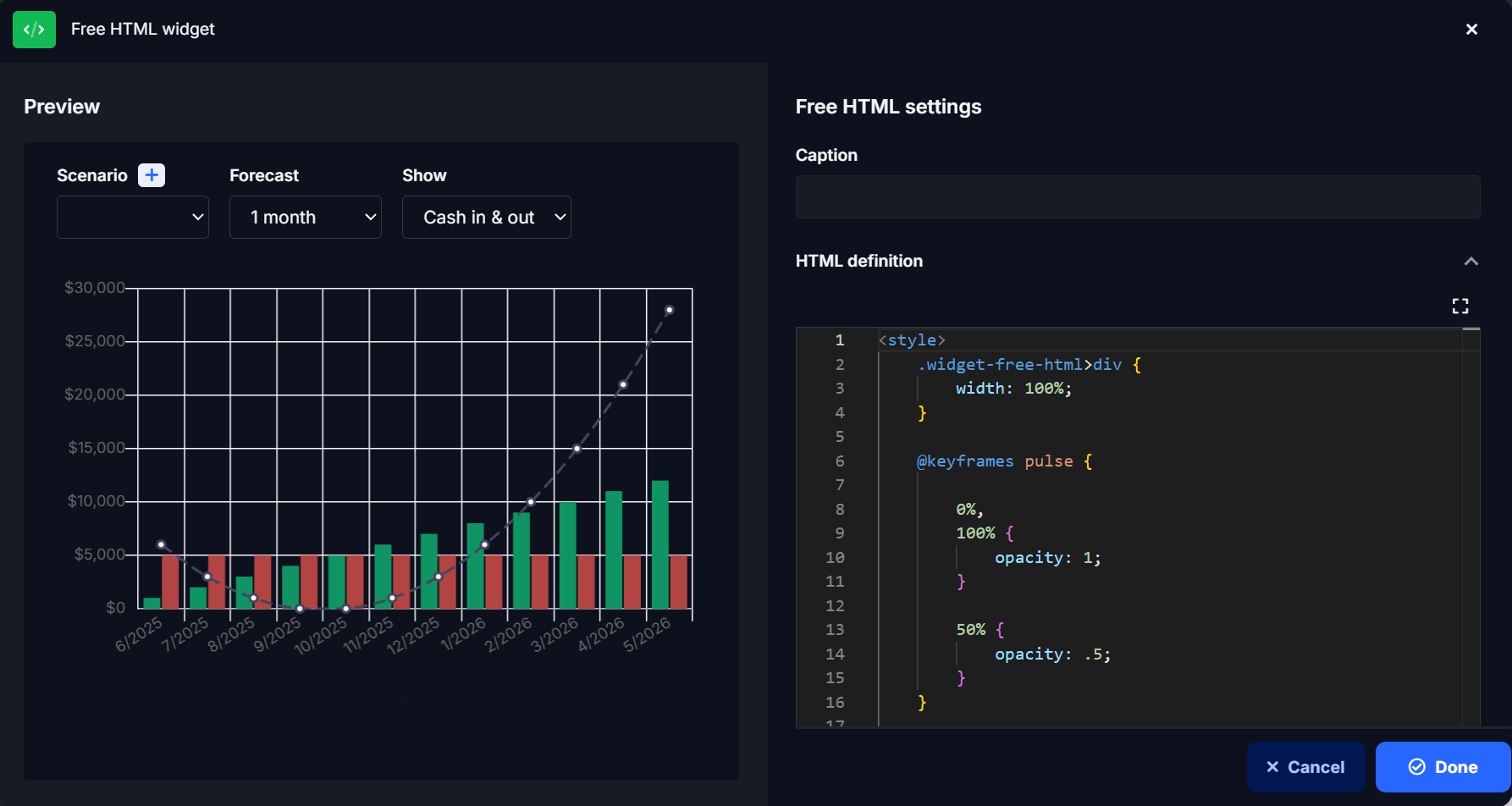

HTML/CSS example (style):

<style>
.widget-free-html > div {
    width: 100%;
}
@keyframes pulse {
    0%, 100% { opacity: 1; }
    50% { opacity: .5; }
}
</style>

This style animates elements with a pulse effect and ensures full-width rendering.

You can also use libraries like Chart.js, Google Charts, or embed interactive dashboards.

Comparison: Field vs Widget

Summary

By using Free HTML in fields and widgets, you can:

• Create custom views for better data interpretation
• React to real-time changes in data
• Display charts, badges, predictions, or any other logic
• Extend Tabidoo beyond no-code limitations
